How modern engineers helped Charlotte, NC's 1902 fire engine pass today’s safety standards

In his 34-year engineering career, Richard Coutant has worked on just about everything related to power plant boilers, but he never had anything come across his desk quite like this.

Could he prove that a fire engine steam boiler built in 1902 meets modern safety standards?

The Fire Department in Charlotte, N.C., has maintained the Metropolitan horse-drawn fire engine since its purchase in 1902, and firefighters enjoyed showing off “Old Sue” for parades and public demonstrations. But the state Department of Labor wanted proof the steam boiler – which powers a piston engine driving the water pump – could meet current safety standards.

So Old Sue was sidelined. That’s where Coutant, a Duke Energy engineer based in Raleigh, and his colleagues came in.

"The detail of inspection that the state wanted was way beyond anything we had ever done and our knowledge of pressure boilers is very limited," Charlotte Fire Chief Jon Hannan said. "The only organization I could think of that still uses boilers extensively is Duke Energy."

After searching the company's directory, Hannan found a listing for Duke Energy Senior Vice President and Chief Fossil/Hydro Officer Regis Repko.

“I figured if anyone on the planet had the resources to solve this problem, it would be him,” Hannan said, “so I gave him a call.”

Repko set the partnership in motion so Coutant could help the fire department pro bono.

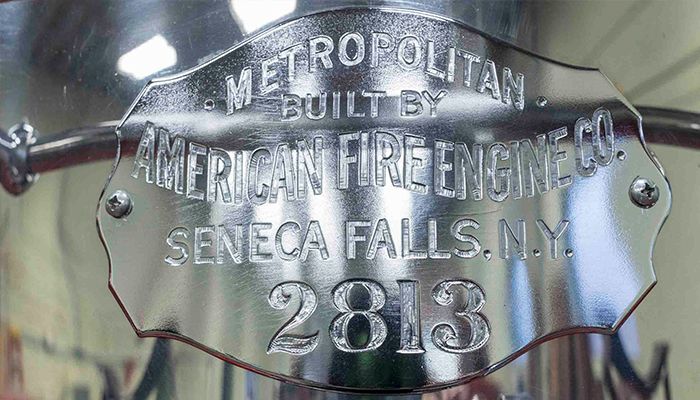

Although the fire department had the original operating manual and history for Metropolitan Steam Fire Engine 2813, no original design specifications existed. For these types of inspections, engineers typically have specifications for guidance. In this case, Coutant and his team had to establish the boiler's original design through reverse engineering.

20170321OldSue_4_700

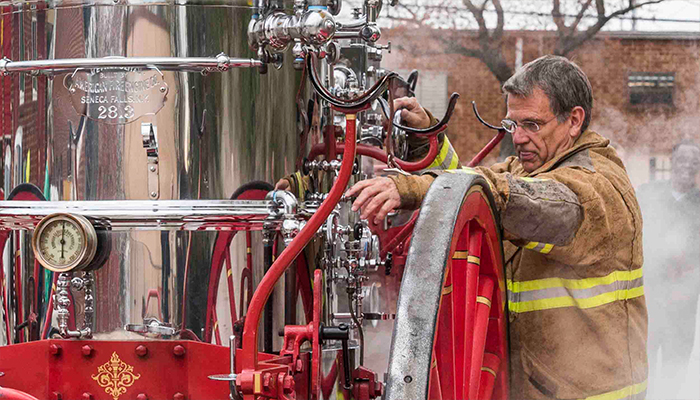

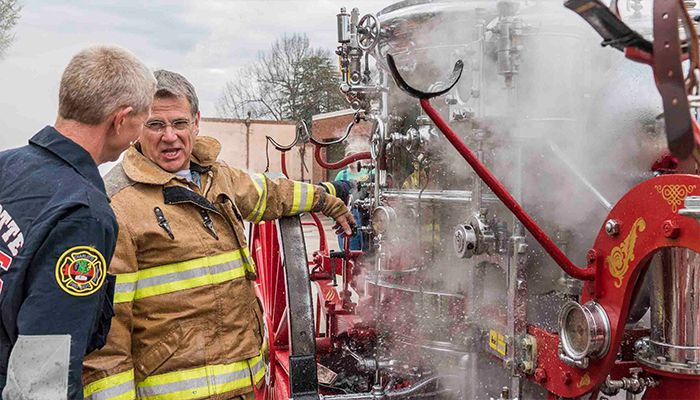

Charlotte Fire Chief Jon Hannan makes adjustments during testing.

Old Sue compared to modern power plants

While the technology has changed little since 1902, there is a huge difference in pressures and temperatures between Old Sue and boilers in modern power plants.

Using coal as its fuel, Old Sue heats water to steam, reaching about 280 degrees Fahrenheit, to power a piston engine. Power plant boilers heat water upward of 1,000 degrees Fahrenheit to push steam through a turbine that's connected to a generator, producing electrical energy.

The pressures are also vastly different. Old Sue’s small boiler uses 60 pounds per square inch (psi), while large boilers in modern power plants are pressurized to 2,500 to 3,400 psi.

The boiler detectives at work

dont-miss-a-thing-button2

Coutant and colleagues Scott Bowes and Tony Battaglia developed a checklist to inspect the boiler and conduct tests for state inspectors. Fire department Battalion Chief Robby Myers disassembled parts of the boiler for testing by the Duke team, reassembled the steamer and prepared it for inspection.

Coutant also took measurements used to perform engineering calculations to determine the boiler's maximum allowable working pressure while Battaglia and Bowes used ultrasonic gauges to test the thickness of the boiler's metal shell and fiber optic remote video to view the internal components.

20170321OldSue_2_700

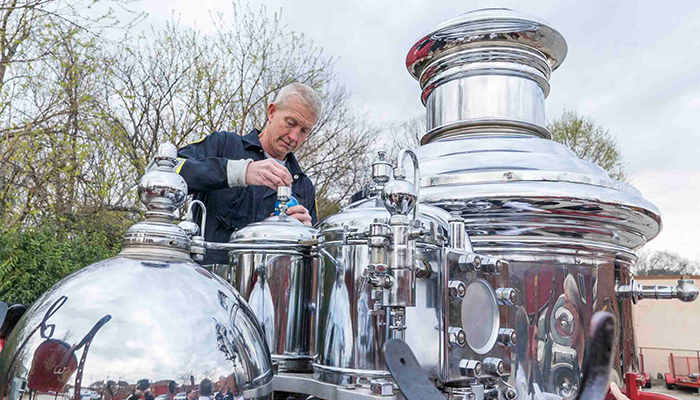

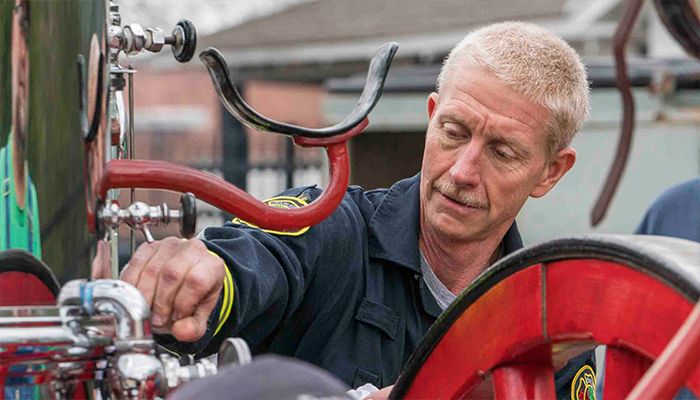

Battalion Chief Robby Myers prepares the boiler for testing.

Coutant said he felt like one of the history detectives on the popular television show. "A lot of my research focused on the evolution of the inspection codes and working with Bowes and the state inspectors to confirm the current expectations for antique boilers," he said.

"Unlike modern boilers, welding technology did not exist at that time," Coutant said. "Instead of welds, the boiler is held together with stay bolts and rivets. Surprisingly, even after 115 years, the boiler is in great condition."

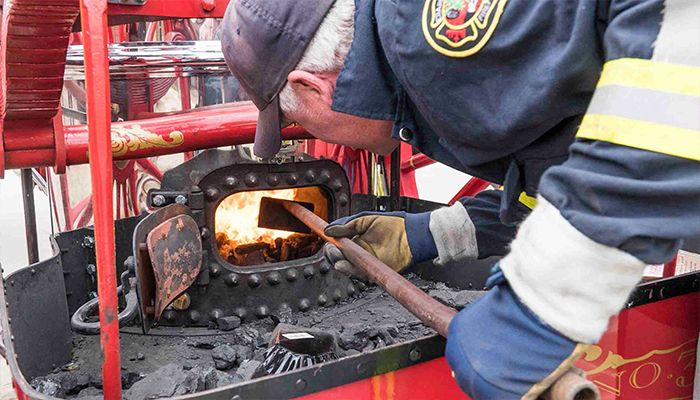

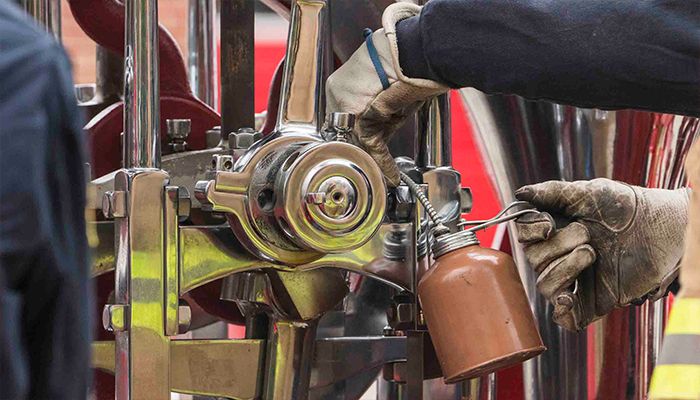

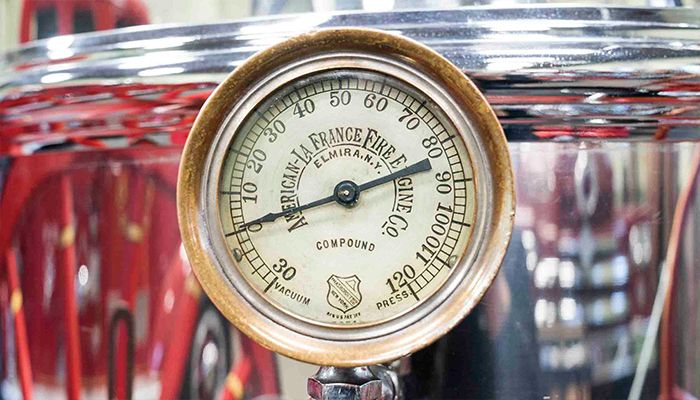

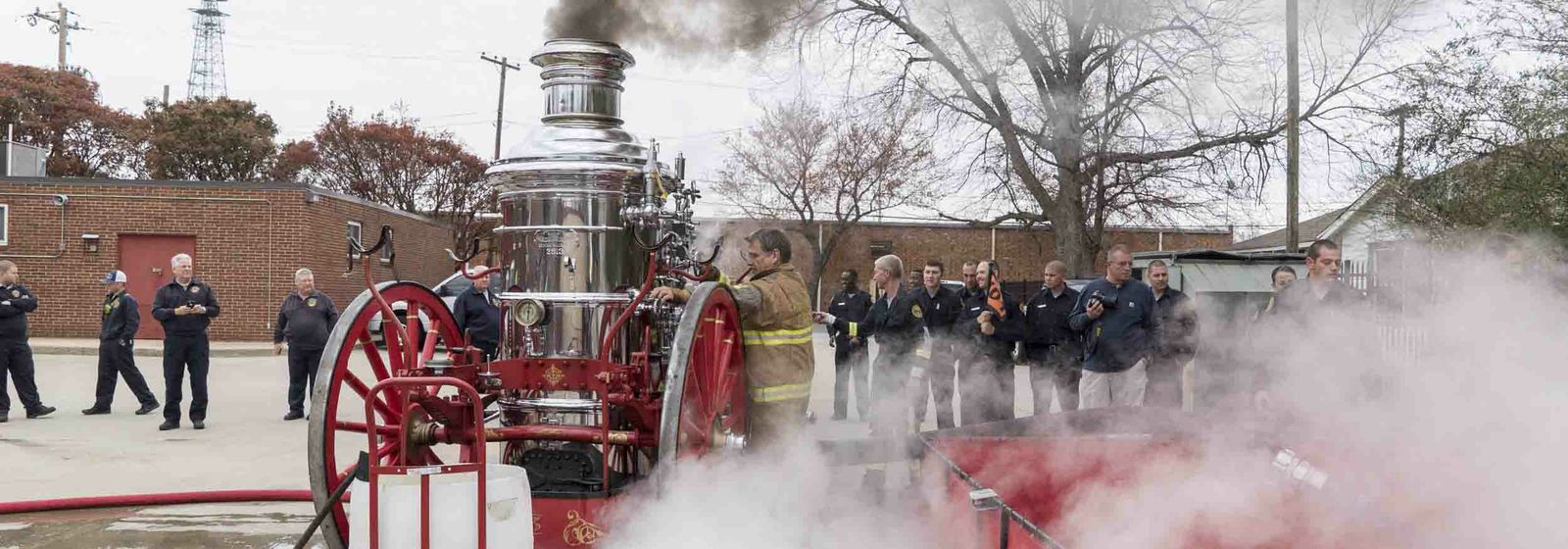

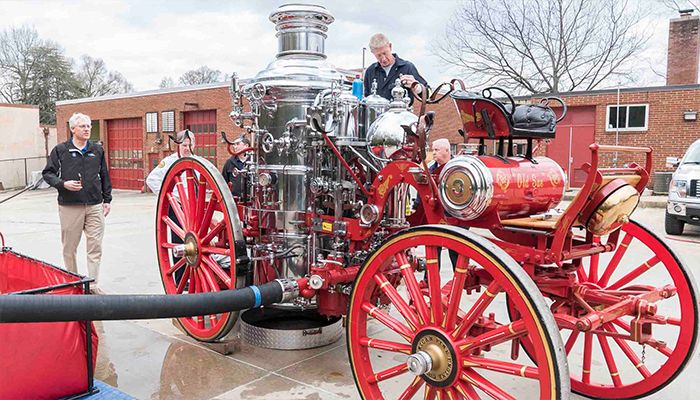

And so on a brisk morning in March, state inspectors joined firefighters at Station 11 in Charlotte to watch Old Sue in action and see if she would meet today’s standards. Her fire department handlers Robby Myers, Jimmy Thompson and Matt Brown oiled the valves, added fuel, adjusted dials and waited for the right amount of pressure. Her stainless steel-covered boiler glistened as coal was ignited in the firebox and black smoke spewed from the stack.

After about 45 minutes, the pressure had risen. They turned on the pump.

oldsue024

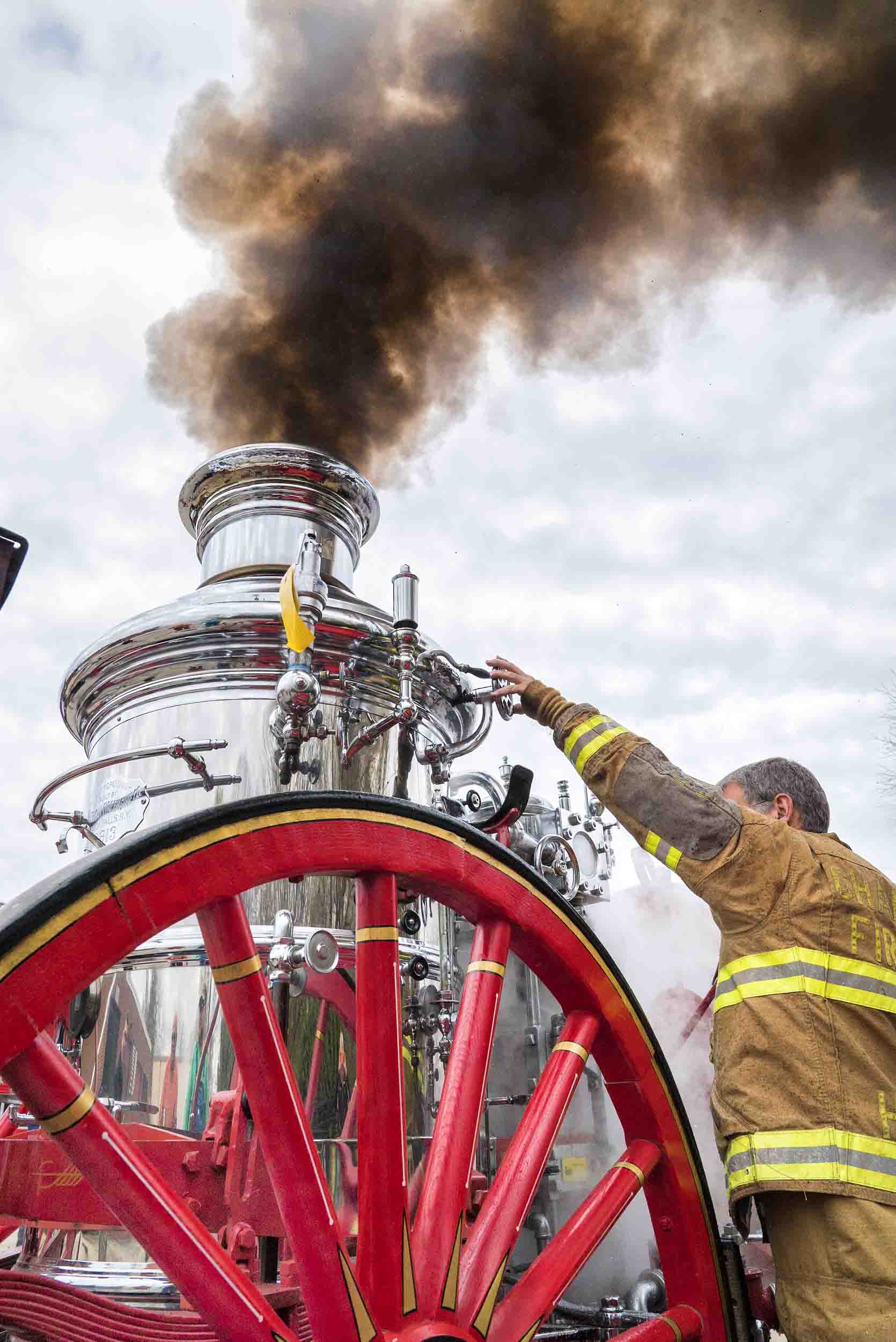

Steam boiler Old Sue passes her inspection at 115 years old.

Coal exhaust drifted through the air to the metallic “thump, thump, thump, thump” of the engine. Steam encircled the boiler. “Thump, thump, thump, thump.” And a powerful flow of water continuously shot out of a fire hose. “Wooooo-woo-woo” signaled the steam whistle. Success.

The state inspectors’ verdict: Old Sue passed the test after 115 years.

"You can see virtually all the moving parts in the steam engine and fire pump,” Hannan said. “It is a beautiful work of art in its own right, taking us back to the romantic age of firefighting."
